Bare Bones OS

OVMF

I need OVMF.fd to use UEFI for emulation or virtual machines. Virtual Box does not need it. There is a edk2-ovmf-git on Arch AUR.

I got OVMF.fd through (2)[3]. Traditional OSes like Windows and Linux already have a large section of their codebase dedicated to system's device discovery and device configuration, and do not benefit from UEFI much, and only use it to start the environment they will run in. Individual devs would benefit from UEF(3) UEFI applications are in PE32/PE32+ (for 64-bit) format, which is basically Windows EXE/DLL without symbol tables. UEFI should be utilised well, and the OS should not be in a hurry to leave “UEFI-land”. POSIX-UEFI [4] allows writing UEFI applications with a libc-like A(4(5)Adding UEFI to an application: ``(6) gi(7)lone https://gitlab.com/bztsrc/posix-uefi.git (opens in a new tab) cd(8)our project> ln(9) ../posix-uefi/uefi

**NOTE**: The above can be converted to a better format using git submodules.

Using POSIX-UEFI:
```c
// main.c
#include <uefi.h>
int main (int argc, char **argv)
{
  printf("Hello, world!\n");
  return 0;
}

The main.c has to be at the root (or variables need to be defined to update this).

# Makefile
TARGET = helloworld.efi
include uefi/Makefile

Using uefi-run to help create the UEFI image:

uefi-run -b ./boot/OVMF.fd helloworld.efi

This will start a VNC server.

NOTE: More UEFI applications examples from [5].

NVRAM

The configurations for UEFI on real hardware will be shown in a GUI and stored on an NVRAM chip to persist between reboots.

The linux kernel has a module efivars to use manufacturer's convenience functions (that are loaded in RAM by the firmware) to list these variables and it can be visible in /sys/firmware/efi/efivars. UEFI has a shell program bcfg which works like Linux's efibootmgr to work with boot order NVRAM variables.

Bootable UEFI Applications

In the boot device's /efi/boot path, there will be a BOOTX64.efi (for 64-bit applications) and is the default path and name for OVMF.

Unlike a UEFI application launched from shell, if a bootable UEFI application returns, it will keep searching for other boot devices.

Types of Applications

1. Applications
   • OS Loaders and utils.
   • These must load an OS or exit main function
   • On exit of main function, the boot loader will look for other apps to load.
2. Boot service drivers
   • Drivers for booting eg. device drivers, network drivers, etc.
3. Runtime drivers
   • Drivers which stay loaded when OS loads and exits boot services.

Memory

For the memory management functions in EFI, an OS is meant to be able to use "memory type" values above 0x80000000 for its own purposes.

ELF

Executable and Linkable Format [6]. It's a format used by Linux and many UNIX-like OSes and is a standard format for executable files, object code, shared libraries, etc.

It consists of:

1. ELF Headers a. Type b. CPU Architecture c. Virtual Address entry point d. Size and offset of various parts e. etc.
2. Section header table a. List of available segments and their attributes. b. etc.
3. Program header table a. Describes every segment

readelf can help read an ELF file.

Cross Compilation

Since our OS is not ready yet, it can not compile itself inside it. So we need to compile our OS inside another OS (like Linux), which is called cross-compilation. i686-elf is a generic ELF target (Linux ELF is only understood by Linux), and the System V ABI is well tested, so for now, they will suffice.

Multiboot Standard

Multiboot standard [7] provides an easy interface between bootloaders like GRUB and the OS kernel. It contains a multiboot header which contains some “magic” values in global variables which the bootloader searches for.

The boot.s will be done in assembly for now. The kernel needs to define a stack, and high level languages like C can not function without a stack, and thus can not be used for booting. The GNU doc linked above provides the multiboot specifications.

NOTE: We will be using GRUB and BIOS, not UEFI, so no need for OVMF for emulation yet.

Multiboot Headers

The first three 32-bit values it requires are magic (0x1BADB002), flags (bits 0-15 are requirements, 16-31 are optional), and a 32-bit checksum such that checksum + magic + flags = 0 (by overflowing). According to the GNU doc, the required bits, if not understood by the bootloader, will result in failure to load OS image, while failure for the other bits would simply lead to ignoring them.

The flag 1 << 0 is for ensuring modules are loaded at page boundaries (4KB), while 1<<1 ensures memory map is passed on to the kernel. 1<<2 ensures video mode table is available to the kernel, while 1<<16 are for when the kernel is a .o file instead of an ELF file.

The .align 4 is important to align everything to 4-bit boundaries, followed by actually placing the magic, flags and checksum values. The section can be named something like .multiboot, though it's not a requirement.

/* boot.s */

.set MAGIC, 0x1BADB002 /* Magic number */
.set FLAGS, (1 << 1 | 1 << 0) /* Flags for loading modules on page boundaries + memory map) */
.set CHECKSUM, -(MAGIC + FLAGS) /* checksum + flags + magic = 0 */
/* --- */
.section .multiboot
.align 4 /* 32-bit alignment */
.long MAGIC
.long FLAGS
.long CHECKSUM

Stack Pointer

We can create a stack, as the standard does not define the value of the stack pointer variable (esp in x86), and it's up to the kernel to provide a stack. In x86, the stack grows downward (from higher memory to lower memory), so the stack top is a required value (used later). The variables for stack top and bottom can be put into something like the .bss.

.section .bss
.align 16
stack_bottom:
.skip 16384
stack_top:

This gives a 16-bit aligned stack bottom and stack top, and thus the size of the stack is 16384 bytes, which is 16 KiB. The System V ABI requires the stack to be 16-bit in alignment, and we're using System V ABI, so we need to follow that.

Entry Point

The linker script we will write later provides _start as the entry point, and the bootloader will jump to this position once the kernel is loaded and start executing from there. The GNU doc also mentions various registers like EAX, EBX, CS, ESP, etc. and what their values should be when the bootloader invokes the 32-bit operating system.

The ESP register needs the top of the stack (since in x86, stack grows downwards, ie. from higher to lower memory address). The kernel's main function kernel needs to be called then, and then needs to go into an infinite loop.

_start:
    mov $stack_top, %esp
    /*<< Initialize the other processor features here >>*/
    call kernel
1:  hlt
    jmp 1b

A very useful instruction is cli right after calling the kernel, which disables interrupts, but they are disabled already by the bootloader, so not required.

The hlt will lock up the computer as interrupts are disabled, and jmp 1b is to jump to the hlt instruction in the case the CPU wakes up from the lock up because of a non-maskable interrupt or system management mode.

Size

Finally, setting size of _start, which is not required, but is useful for debugging and tracing:

.size _start, . - _start

Overall Assembly

/* boot.s */

.set MAGIC, 0x1BADB002 /* Magic number */
.set FLAGS, (1 << 1 | 1 << 0) /* Flags for loading modules on page boundaries + memory map */
.set CHECKSUM, -(MAGIC + FLAGS) /* checksum + flags + magic = 0 */

.section .multiboot
.align 4
.long MAGIC
.long FLAGS
.long CHECKSUM

.section .bss
.align 16
stack_bottom:
.skip 16384
stack_top:

.section .text
.global _start
.type _start, @function
_start:
        mov $stack_top, %esp
        call kernel
1:      hlt
        jmp 1b
.size _start, . - _start

Freestanding Environments

Applications written in something like C for userspace are for hosted environments. These environments provide a C standard library, and a lot of utility functions.

These can not be used to write a kernel, as the kernel is a freestanding environment. However, some header files that look like part of C standard library are actually from the compiler itself, and thus can be used in freestanding applications like stdbool.h, stddef.h, stdint.h, float.h, iso646.h, limits.h, and stdarg.h, etc.

Kernel

UEFI supports pixel buffers. To write text on screen, so each glyph has to be drawn by the kernel to show text on screen. This is what a font is, it is a bitmap that corresponds to pixels.

NOTE: All Linux distros ship PC screen fonts.

Video Graphics Array (VGA) [8] is one of the memory-mapped I/Os. In most cases, it's limited to 80x25 characters (where 80 is the number of columns). This is also why Linux codebase has a limit of 80 columns. Technically, the buffer can be increased for devices which support it, but that's out of syllabus as VGA text mode is (along with GRUB) not supported on “newer” (non-fossilised) machines. VGA text buffer is located at 0xB8000.

Every element in the array has 2 parts to it. The 8 least significant bits represent the ASCII value of the item, while the rest of the bits are for how they appear on the screen. Thus every element is 16 bits, and the size of the VGA array becomes 4000 bytes.

The bright bit when turned ON will lead to a lighter shade of the foreground.

Thus, writing a character at a particular row and column is just writing a byte at that particular location in the buffer. Of course, an old technology like this won’t support more than ASCII. In a struct with bit fields, the earlier the element is, the lower significance of their bits. Thus an element in the VGA array can be described using:

#include <stdint.h>
#include <stdbool.h>

#define VGA_BASE ((uintptr_t) 0xB8000)
#define VGA_WIDTH_DEFAULT 80
#define VGA_HEIGHT_DEFAULT 25

enum vga_color
{
	VGA_COLOR_BLACK = 0,
	VGA_COLOR_BLUE = 1,
	VGA_COLOR_GREEN = 2,
	VGA_COLOR_CYAN = 3,
	VGA_COLOR_RED = 4,
	VGA_COLOR_MAGENTA = 5,
	VGA_COLOR_BROWN = 6,
	VGA_COLOR_GREY = 7,
};

typedef struct
{
        char ch;
        uint8_t fg: 3;
        uint8_t bright: 1;
        uint8_t bg: 3;
        uint8_t blink: 1;
} vga_elem_t;

vga_elem_t *vga = (vga_elem_t *) VGA_BASE;

Also, we want to initialise an empty screen first:

static void vga_init(void)
{
        uint8_t r = 0;
        uint8_t c = 0;
        int n = VGA_HEIGHT_DEFAULT * VGA_WIDTH_DEFAULT;
        while(n--)
                put_char('\0', &r, &c, VGA_COLOR_GREY,
                        VGA_COLOR_BLUE, true, false, false);
}

Finally:

void kernel(void)
{
        uint8_t r = 0;
        uint8_t c = 0;
        vga_init();
        puts("COCOS by resyfer\nHello World as well!!!", &r, &c);
}

Thus entire kernel.c:

#include <stdint.h>
#include <stdbool.h>

#define VGA_BASE ((uintptr_t) 0xB8000)
#define VGA_WIDTH_DEFAULT 80
#define VGA_HEIGHT_DEFAULT 25

enum vga_color
{
	VGA_COLOR_BLACK = 0,
	VGA_COLOR_BLUE = 1,
	VGA_COLOR_GREEN = 2,
	VGA_COLOR_CYAN = 3,
	VGA_COLOR_RED = 4,
	VGA_COLOR_MAGENTA = 5,
	VGA_COLOR_BROWN = 6,
	VGA_COLOR_GREY = 7,
};

typedef struct
{
        char ch;
        uint8_t fg: 3;
        uint8_t bright: 1;
        uint8_t bg: 3;
        uint8_t blink: 1;
} vga_elem_t;

vga_elem_t *vga = (vga_elem_t *) VGA_BASE;

static void memcpy(void *dest, const void *src, uint32_t n)
{
        char *d = dest;
        const char *s = src;
        while (n--)
                *d++ = *s++;
}

static void scroll_one_row(void)
{
        memcpy(vga,
               vga + (1 * VGA_WIDTH_DEFAULT * sizeof(vga_elem_t)),
               sizeof(vga_elem_t)
                * VGA_WIDTH_DEFAULT
                * (VGA_HEIGHT_DEFAULT - 1));
}

static void put_char(char ch, uint8_t *row, uint8_t *col,
                     enum vga_color fg, enum vga_color bg,
                     bool bright, bool blink, bool scroll)
{
        int idx;
        if (scroll && *col == VGA_WIDTH_DEFAULT - 1 && *row == VGA_HEIGHT_DEFAULT - 1)
        {
                scroll_one_row();
                *row = VGA_HEIGHT_DEFAULT - 2;
                *col = 0;
        }
        idx = *row * VGA_WIDTH_DEFAULT + *col;
        vga[idx] = (vga_elem_t) {ch, fg, bright, bg, blink};
        (*col)++;
        *row += *col / VGA_WIDTH_DEFAULT;
        *col %= VGA_WIDTH_DEFAULT;
}

static void puts(const char* s, uint8_t *row, uint8_t *col)
{
        while(*s != '\0') {
                if (*s == '\n') {
                        (*row)++;
                        if (*row == VGA_HEIGHT_DEFAULT) {
                                scroll_one_row();
                                (*row)--;
                        }
                        *col = 0;
                } else if (*s == '\r') {
                        *col = 0;
                } else {
                        put_char(*s, row, col, VGA_COLOR_GREY,
                                VGA_COLOR_BLUE, true, false, true);
                }
                s++;
        }
}

static void vga_init(void)
{
        uint8_t r = 0;
        uint8_t c = 0;
        int n = VGA_HEIGHT_DEFAULT * VGA_WIDTH_DEFAULT;
        while(n--)
                put_char('\0', &r, &c, VGA_COLOR_GREY,
                        VGA_COLOR_BLUE, true, false, false);
}

void kernel(void)
{
        uint8_t r = 0;
        uint8_t c = 0;
        vga_init();
        puts("COCOS by resyfer\nHello World as well!!!", &r, &c);
}

Linker

The linker starts with mentioning the entry point of boot.s. We used the label _start:

ENTRY(_start)

Then we need to mention the various sections (added some in boot.s like .multiboot and .bss and .text) and where they need to be loaded.

The .text section contains our code, and we want it to be loaded from the earliest location in RAM which will not cause any problems. BIOS and UEFI need some space at the start of RAM for various things. An example is the video memory for VGA used above. In BIOS, the address 0x100000 (0x0 - 0xFFFFF is 1MiB) of memory was almost guaranteed to be a safe location, but UEFI has complicated things (TODO), and apparently need some space for various firmware things, and thus 2MiB (linker scripts understand it as 2M) is generally a safe location. We also want the sections to be aligned with page boundaries.

The linker script described by OSDev Wiki uses both BLOCK and ALIGN to align the sections to memory addresses of multiples of 4KiB (the page boundaries). They both resemble the same thing, and have been written for backwards compatibility, but ALIGN is preferred and that's what we will use (BLOCK and ALIGN in linker script).

SECTIONS {
        . = 2M;

        .text: ALIGN(4K)
        {
			*(.multiboot)
			*(.text)
		}

        .rodata: ALIGN(4K)
		{
			*(.rodata)
		}

        .data: ALIGN(4K)
		{
			*(.data)
		}

        .bss: ALIGN(4K)
		{
			*(COMMON)
			*(.bss)
		}
}

These loading of these sections start at 2M location, then loads any .text sections and .multiboot sections in the section called .text, and ensures .multiboot is kept first so that the multiboot information appears at the start of the image.

.rodata is read only data outside of text. Some people put this along with .text as well. Then .data contains the initialised global variables.

According to Computer Systems, 2nd Ed. by Bryant, O'Hallaron, .bss contains uninitialised global variables while .COMMON contains uninitialised static data objects that are not yet allocated or global variables initialised to 0. But these later get bundled into the .bss section after the linker is done with it (since we compile these two into .bss).

Compiling

boot.s (assuming it's inside a directory called src):

i686-elf-as src/boot.s -o build/boot.o

kernel.c (inside src):

i686-elf-gcc -c src/kernel.c -o build/kernel.o -std=c17 -ffreestanding -O2 -Wall -Wextra

Finally:

i686-elf-gcc -T linker.ld -o build/cocos.bin -ffreestanding -O2 -nostdlib build/kernel.o build/boot.o -lgcc

GRUB

To give grub more information, we can create a directory like:

iso
└── boot
    ├── cocos.bin
    └── grub
        └── grub.cfg

Here cocos.bin is the binary obtained above, and grub.cfg is as follows:

menuentry "cocos" {
	multiboot /boot/cocos.bin
}

To create the ISO, give the ISO directory name (iso) and the output ISO file:

grub-mkrescue -o cocos.iso iso

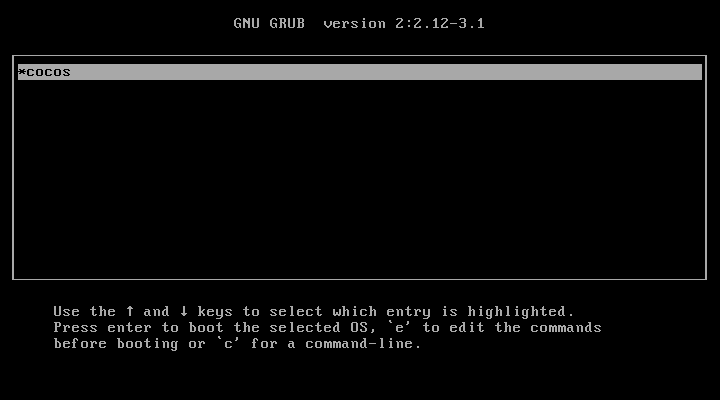

This will also load GRUB with it.

QEMU

To run this:

qemu-system-i386 -cdrom build/cocos.iso

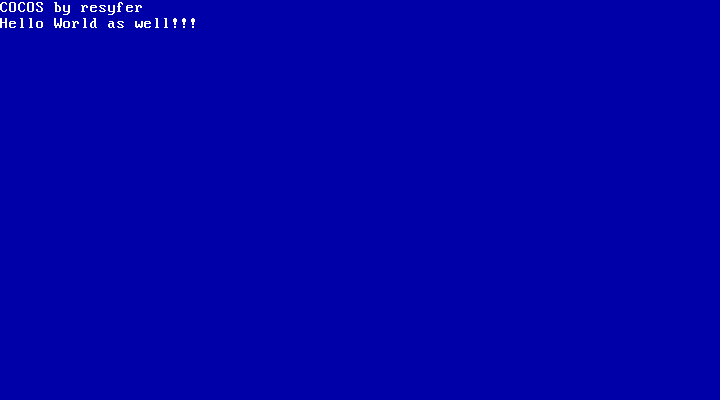

Output
